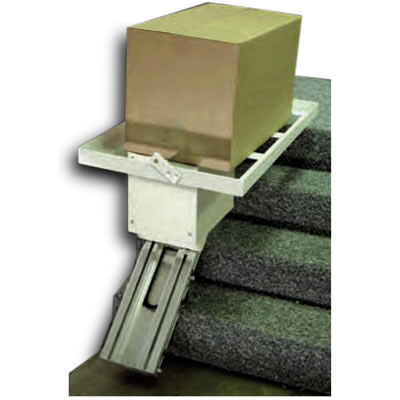

The AmeriGlide AC Cargo Lift is a great addition to any storage room, warehouse, manufacturing plant, or other commercial building. This strong and sturdy cargo lift is designed to be installed on an existing staircase and is rated for transporting 350 pound loads. You can customize the track length to fit your staircase and enjoy the security of limit switches that will automatically stop the lift when it reaches the top or bottom of the stairs. (If the track length is 16 feet or longer, the weight capacity is reduced to 250 pounds.) This model runs off of a 115 VAC household current, so all you have to do is plug it into an existing electrical outlet. No major renovations required. When not in use, the space saving platform folds up and out of the way.
Call us today to learn more about this durable and reliable American made product that will do all the heavy lifting for you and make your workplace safer and more efficient!
* CT, MI and WA customers please check your local inspection regulations for stair lifts.
| Drive Type | Cable |
| Battery Powered | No |
| Self Installable | Yes |
| Basic Installation Included | No |
| Standard Capacity | 350 lb |
| Max Track Length, Standard | 15' |
| Max Track Length, Optional | 25' |
| Track Material | Aluminum |
| Swivel Seat | No |
| Flip-Up Seat | No |
| Flip-Up Armrests | No |
| Constant Pressure Controls | Yes |
| Footrest Safety Sensor | No |
| Unit Footprint, In Use | 18.5" |
| Unit Footprint, Folded | 13.75" |
| Track Footprint | 10" |
| Digital Diagnostics Display | No |
| Key Lock | No |
| Shipping Info | |
|---|---|
| Shipping Weight | |
| Shipping Length | |
| Shipping Width | |
| Shipping Height | |
Cargo Carrier
Heavy Cargo Carrier, 18" x 36"$0.00
Track Length (15' is Standard *)
- * Actual track is 6" longer. A 6" overrun is required to allow safe add/removal from cargo pan at top of stairs.$0.00
- Custom Cut track Less Than 15'$154.00
- 15' of track (180")$0.00
- Track length over 16' reduces weight capacity to 250 pounds$0.00
- Up to 18' of track (180" to 216")$467.00
- 18' to 25' of track - 250 lb. capacity (216" to 300")$683.00
Call Stations
- Top & Bottom Call-Send Stations$0.00
Orientation (looking UP the staircase)
- The stair lift will be on the left$0.00
- The stair lift will be on the right$0.00
Installation
- Self Installation$0.00
- Nationwide Installation$599.00
- Nationwide Installation and Measurement Service$749.00
- Double Stair Lift Installation Service - Per Stair Lift (Not available in Oregon or Washington)$875.00
- Additional Charge for Installation in the States of: New York, Massachusetts, and Illinois$150.00
Installation Permit
- Additional Charge for Installation in the States of: New York, Massachusetts, and Illinois$150.00
Installation Special Cases
- Installation On Concrete, Steel, or Tile Stairs$300.00
- Installation In Remote or Limited Access Location$285.00
Measurements
- Please enter measurements in feet or inches. Customers using the Measurement Service can skip this step.$0.00
- 1. Overall length$0.00
- 2. Top stair to bottom stair$0.00
- 3. Staircase width$0.00
- 4. Bottom clearance$0.00
- 5. Rise of one step$0.00
- 6. Tread of one step$0.00
- 7. Number of Risers$0.00
- 8. Diagonal$0.00
- 9. Door at the top$0.00
- Need help measuring? Print out the "How to Measure" worksheet.$0.00
