Harmar AL003 Lift
by Harmar Mobility

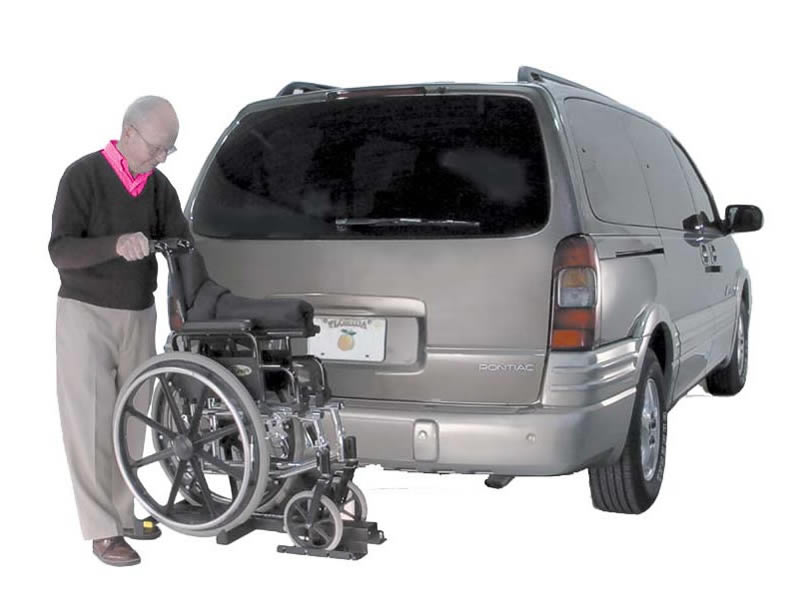

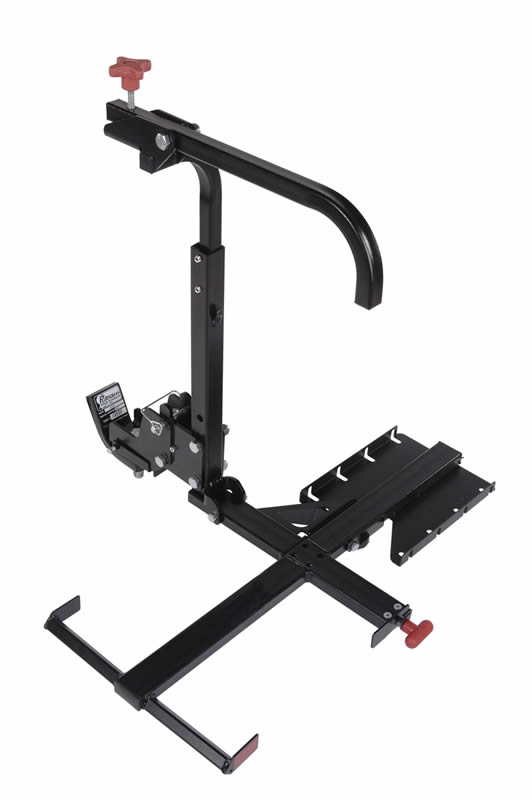

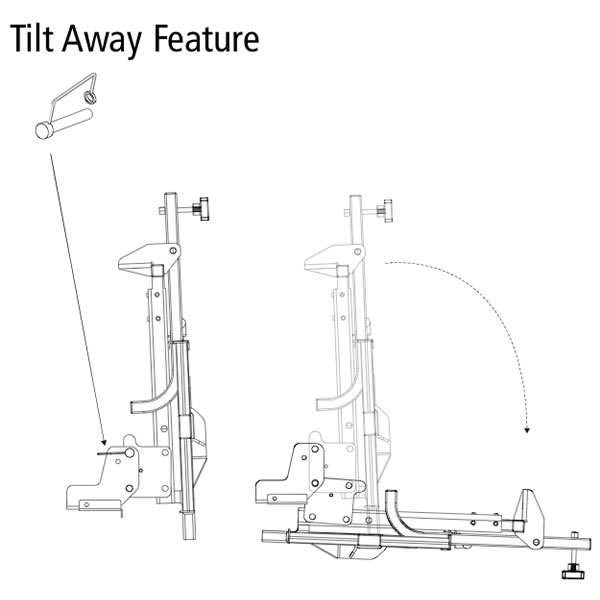

The Tilt N Tote Wheelchair Lift is a wheel chair lift used for transporting folding manual wheelchairs. To use, just fold your manual wheelchair, place it on the platform, and tilt the platform into place. The hold down arm will secure your wheelchair. The lift has just one handle to use as a release mechanism for both loading and unloading. It's a truly simple operation. The Tilt N Tote Wheelchair Lift will also fold down so that you can access your vehicle's tailgate or lift gate. You can mount this wheel chair lift to Class I, II, and III hitches, as well as standard ball mounts, so this lift is very versatile.
NOTE: Hitch Not Included. Additional options may be required for your specific use.
| Lift Capacity | 100 lb |
| Lift Type | Manual Wheelchair |
| Lift Weight | 36 lb |
| Power Source | None |
| Hitch Class | Ball Mount, I, II, III |
| Minimum Hitch Height | 5" |
| Maximum Hitch Height | 19" |
| Usable Platform Size | 13" W |
| Ramp Size | N/A |
| Folds Up Vertically | No |
| Fold Up Method | N/A |
| Shipping Info | |
|---|---|
| Shipping Weight | 36.0 pounds |
| Shipping Length | 33.0 inches |
| Shipping Width | 22.0 inches |
| Shipping Height | 8.0 inches |
Accessories

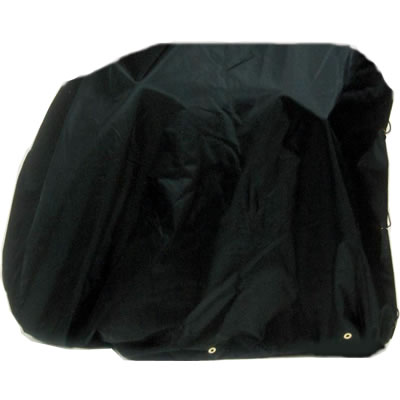

Manual Wheelchair Cover$120.00
- License Plate Riser required in: AK, AL, AZ, CA, CO, FL, HI, ID, KS, MT, ND, NE, NV, OR, PA, SD, TX, UT, VA, WA, WY$0.00
License Plate Extender$285.75
Receiver Hitch
- Ball Hitch Receiver$0.00
- Class 1$264.29
- Class 2$214.50
- Class 3$278.75
Receiver Hitch Adapter
- Class 3$0.00
- No adapter$0.00
- Universal 2", 3", 5" Drop$328.75
- 6" Drop$278.75
- 8" Drop$450.00
- Other Hitch Adapter as Needed (specific will be determined from vehicle and unit information)$229.00
Please tell us about your vehicle
- Vehicle Make$0.00
- Vehicle Model$0.00
- Vehicle Year$0.00
Please tell us about your manual wheelchair
- Wheelchair Make$0.00
- Wheelchair Model$0.00
Installation
- Nationwide Installation Service$500.00
Warranty
- Transferable Limited 3 Year Warranty$0.00
Delivery
- Liftgate Delivery (if not to a commercial location with a loading dock)$125.00
