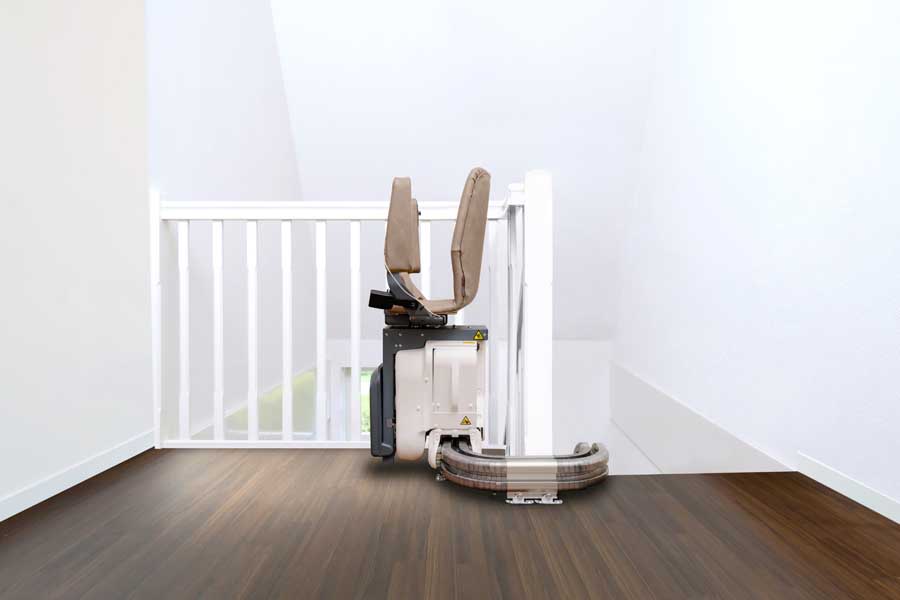

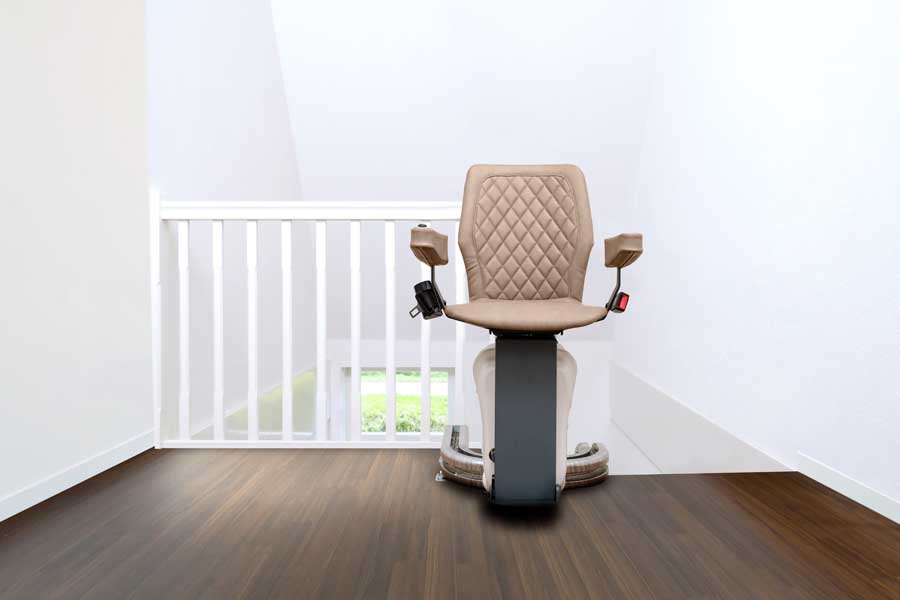

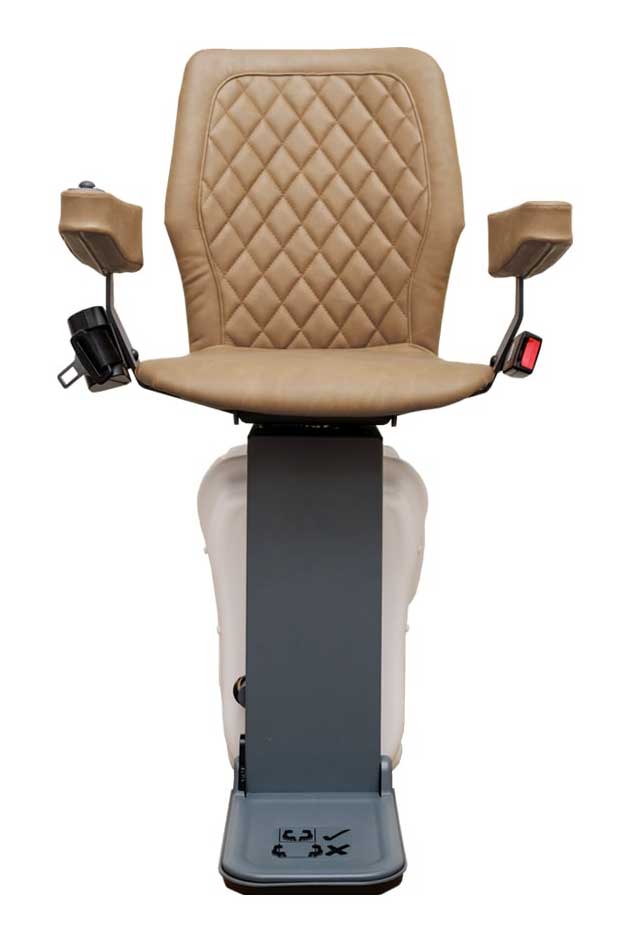

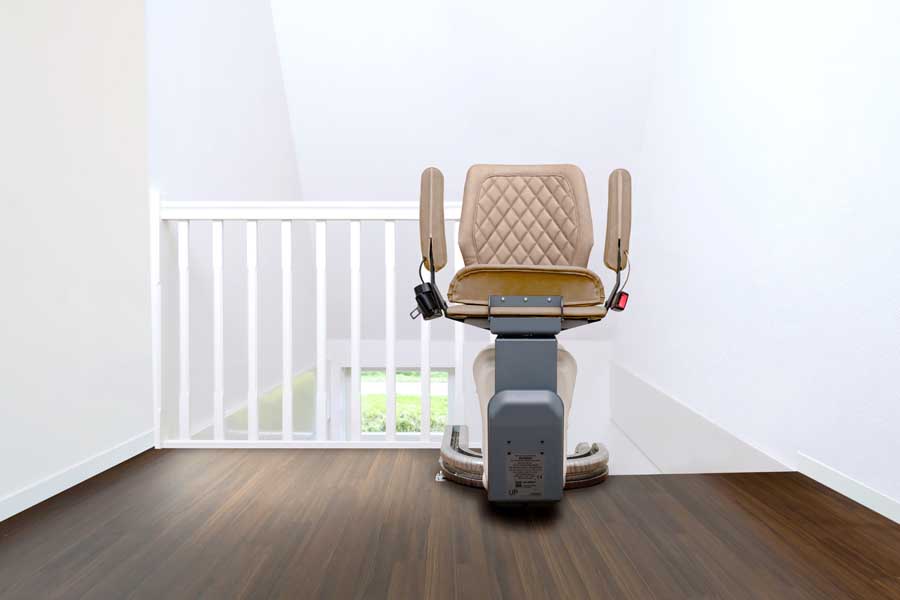

UP 360 Curved Stair Lift
by Harmar Mobility
Prepare to take a step into the future with the UP 360 Curved Stairlift! This innovative lift is designed to meet your needs to help you safely enjoy your independence at home. Created with ease of use in mind, the UP 360 Stairlift includes standard features such as the power swivel and power footrest, wi-fi connectivity for remote service, and more.
We recognize that everyone's home is unique – the UP 360 Stairlift's modular rail can be configured to fit your staircase on the spot! This way, you can bypass the extra time it takes for custom engineering designs, manufacture backlog, and all the work and waiting in between. Need to extend the rail to another room or down a hallway? The modular rail can accommodate virtually any addition. Want to move to another home but worry you may need to leave your lift? Take it with you and ask for a reconfiguration fit for your new residence.
Let the UP 360 Curved Stairlift uplift your spirit and increase independence at home!
Need your new curved stair lift quickly just give us a call and we can get it ordered today! No need to wait for contractors to come out as all we need from you is some pictures of your stair case which you can submit right here under "Click Here to Submit Your Pictures". Check out the process by clicking on the UP Stair Lift Process tab at the top left of this page then give us a call and we will walk you through each step.
Available only in the following states: AL, AR, CT, GA, IL, IN, KS, LA, ME, MO, MS, NH, NY, OH, OK, RI, TN, TX, VT
* CT, MI and WA customers please check your local inspection regulations for stair lifts.
| Drive Type | Rack and Pinion |
| Battery Powered | Yes |
| Self Installable | No |
| Basic Installation Included | No |
| Standard Capacity | 275 lb |
| Max Track Length, Standard | 22' |
| Max Track Length, Optional | 62' |
| Track Material | Modular Rail: Extruded Aluminum, Cast Aluminum |
| Seat Width | 18.6" |
| Seat Depth | 12.6" |
| Swivel Seat | Yes |
| Swivel Seat Rotation | Automatic |
| Flip-Up Seat | Yes |
| Flip-Up Armrests | Yes |
| Constant Pressure Controls | Yes |
| Footrest Safety Sensor | Yes |
| Unit Footprint, In Use | 24.6" |
| Unit Footprint, Folded | 15.75" |
| Track Footprint | 7.9" |
| Warranty | 2 years parts and components, 5 years drive/traction motor, 6 months battery |
| Track Width | 3.6" |
| Call Stations Included | 2 Wireless |
| Digital Diagnostics Display | No |
| Key Lock | No |
| Shipping Info | |
|---|---|
| Shipping Weight | |
| Shipping Length | |
| Shipping Width | |
| Shipping Height | |
Base Unit (All Include a Pair of Charging Sets and 2 Remotes)
Kit- Chassis & Seat w/Up to 22' and 1-90 Degree Turn$0.00- Kit- Chassis & Seat w/Up to 27' and 2-90 Degree Turns$1,755.00
- Kit- Chassis & Seat w/Up to 29' and 3-90 Degree Turns$2,755.00
Orientation (looking up the staircase)
- The Stairlift will be on the Left$0.00
- The Stairlift will be on the Right$0.00
Straight Rail Sections
- 6' Straight Section$422.00
- 4' Straight Section$279.00
- 1" Straight Section$22.00
Curved Rail

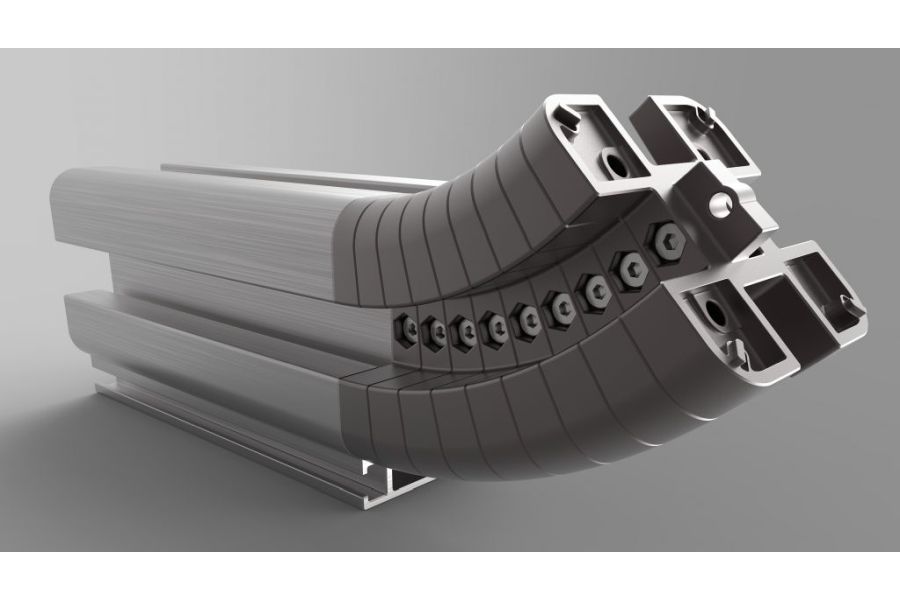

- 90 Degree Curve Set (18 - 5 degree wedges)$465.00

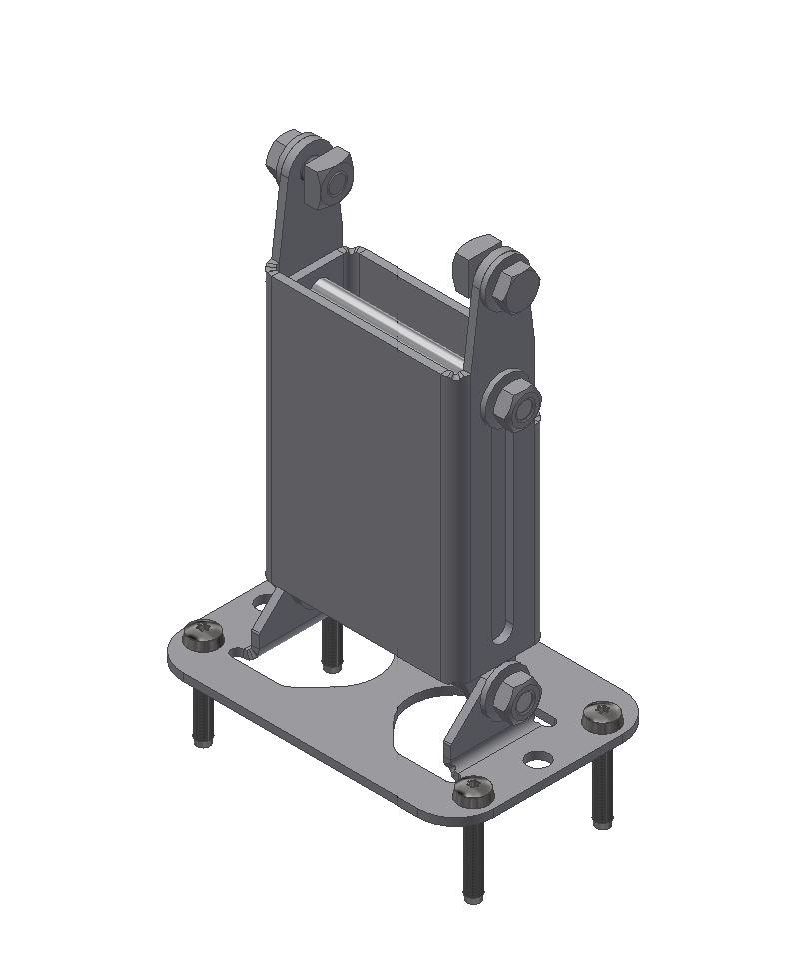

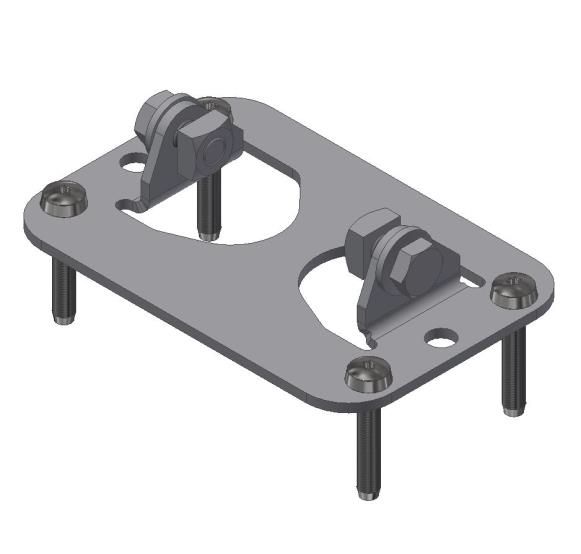

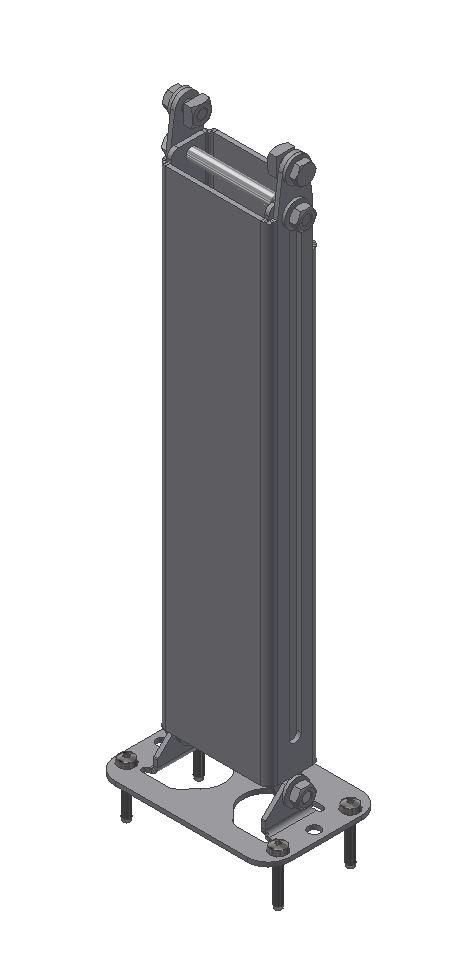

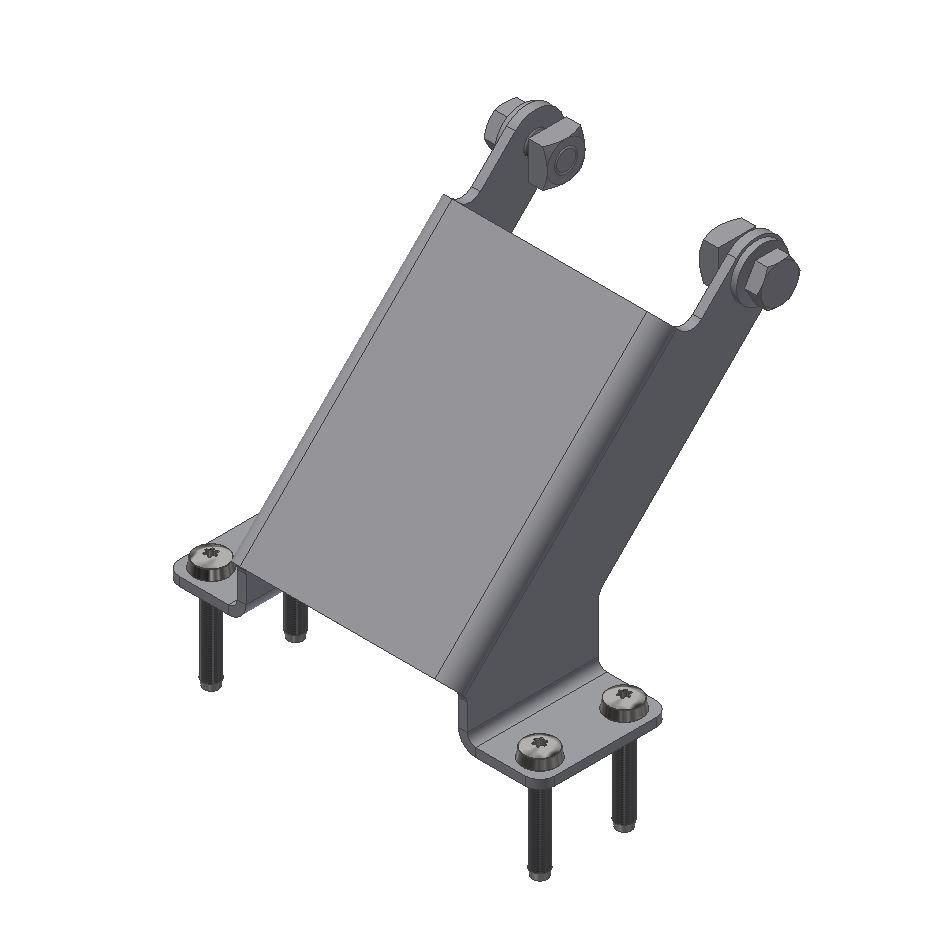

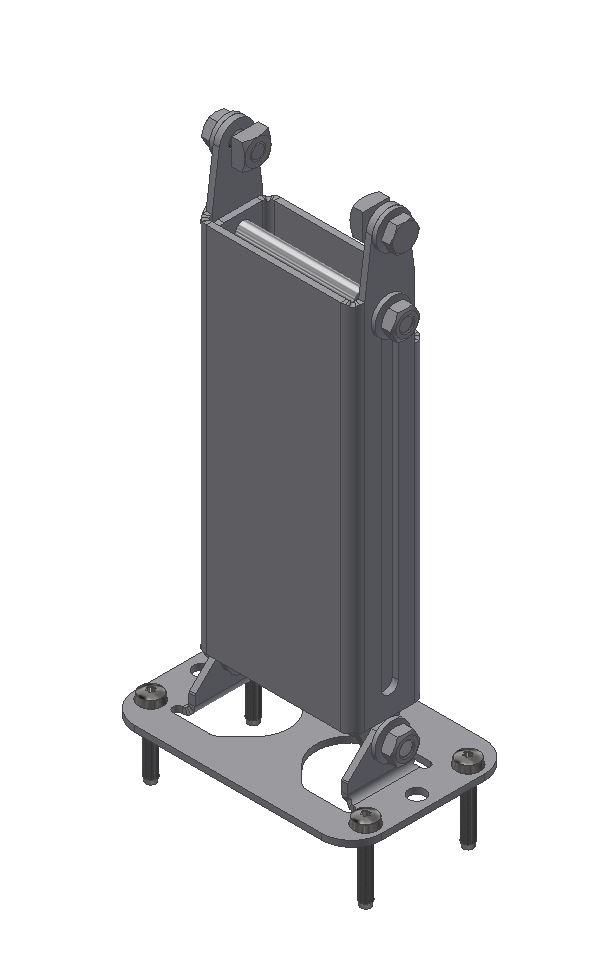

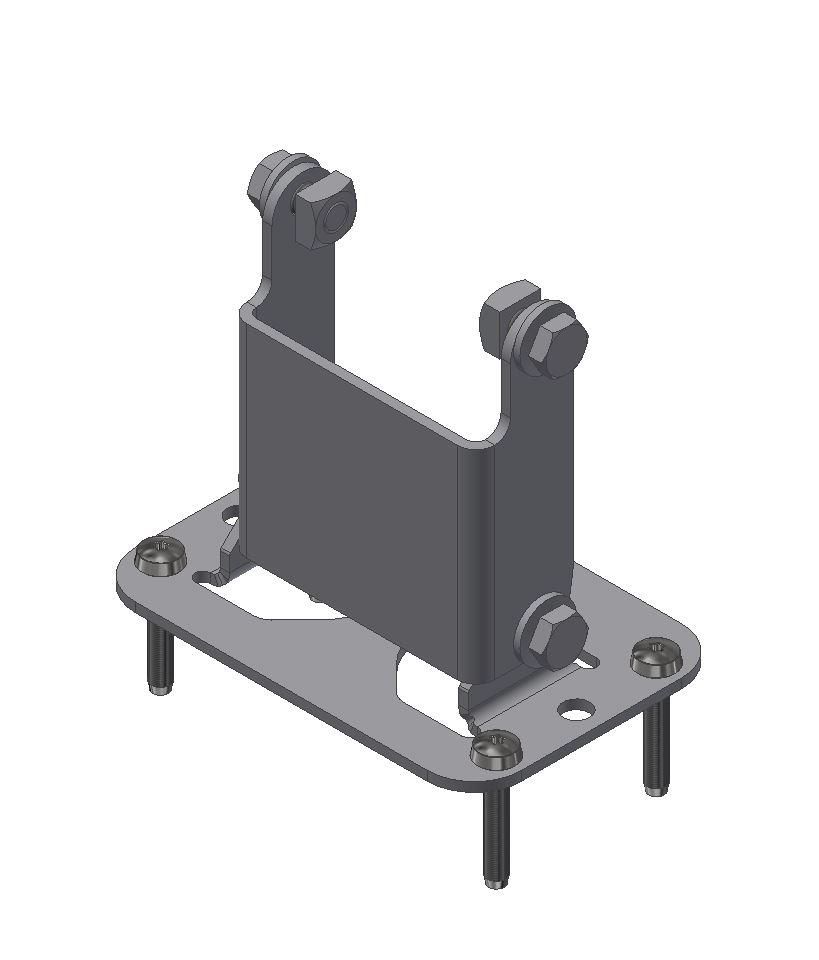

Rail Supports
Extra Small Support$29.00
Small Support$36.00
Medium Support$50.00
Large Support$65.00
Extra Large Support$93.00
Straight Support$43.00
Rail Options
- Gear Rack Screws (box of 250)$29.00
- Extra Charging Station$93.00
- Rail Joint$43.00
- Curve Joint (1 for every rail curve set)$15.00
- Rail Support Filling Plate (set of 5)$36.00
- Small Rail Support Filling Plage (set of 10)$65.00

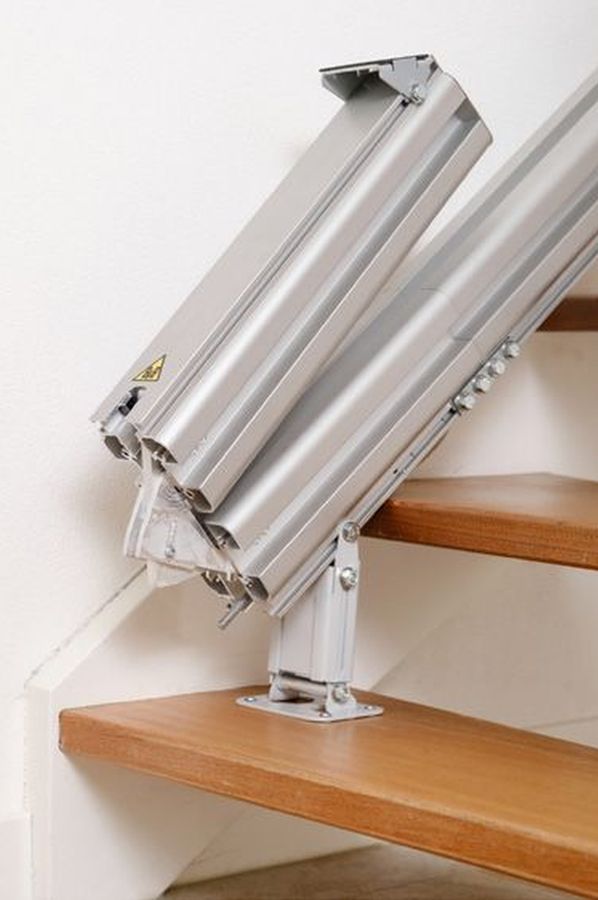

- Hinged Rail Section for Bottom Landing$1,295.00
Additional Options
- Charging Set (box of 2)$186.00
- Left Hand Operation$536.00

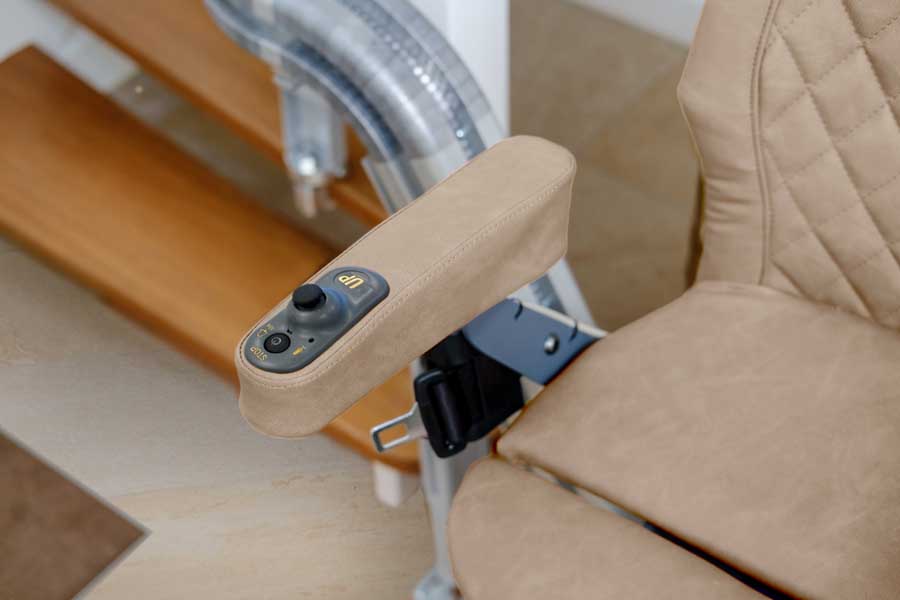

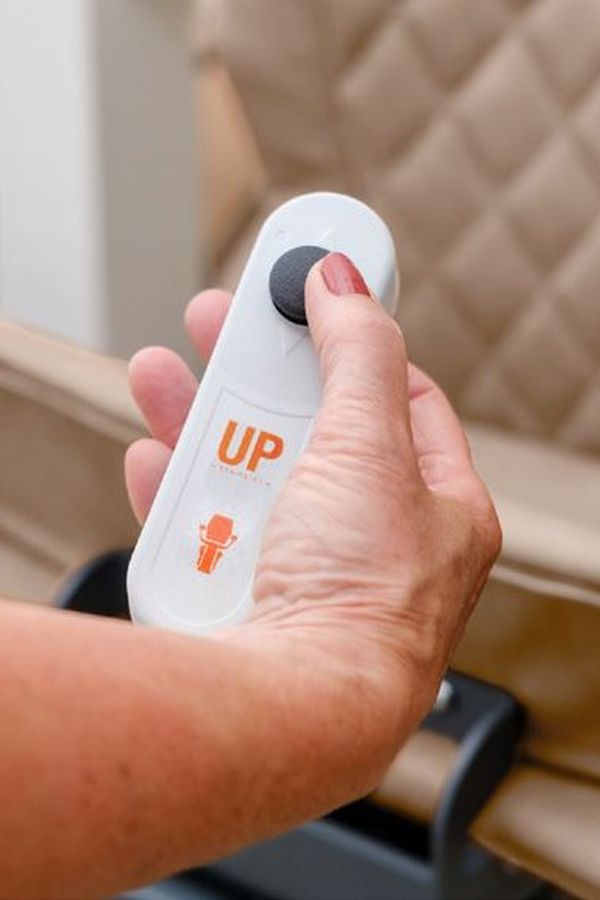

- Remote Control 2.0$136.00
- Seat Extender$79.00
- WiFi Hotspot$422.00
- WiFi Extender/Repeater$136.00
Installation
- Installation$1,250.00
- Installation On Concrete, Steel, or Tile Stairs is available.$460.00
- Is There a Stair Lift Currently Installed Where this Curved Stair Lift Will Be Going?$0.00
- Stair Lift Removal Service$499.00
